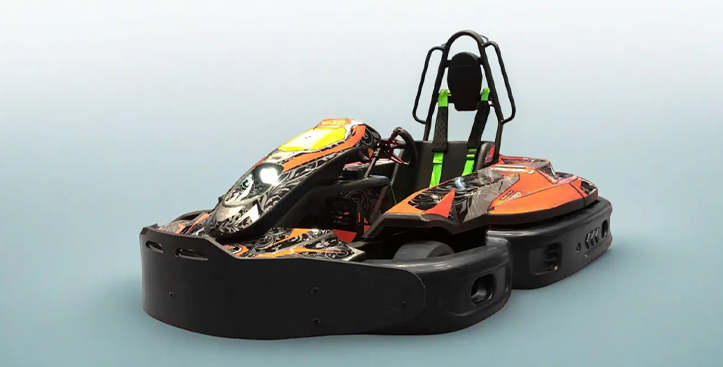

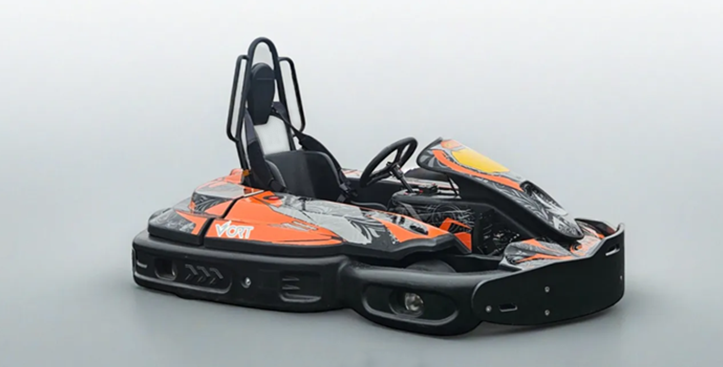

EL-S30 is tailored for senior and adults 1.5m+, offering agility and safe control due to its compact size. It features a durable brushless motor and lightweight LFP battery, ideal for beginners and accomplished drivers alike.
The speed control system provides precise kart speed control, enhancing kart safety for drivers and operators.
- Ergonomic design prioritizing comfort and accessibility for casual drivers
- Adaptable performance tuning, operators can restrict speed (e.g., 40 km/h) for family-friendly use
- Quick swap battery system to minimize downtime
- Wider seating for diverse body types
- Durable & low maintenance: solid frame construction, high-quality aluminum components, which can effectively help track operators reduce maintenance costs and downtime
- Enhanced durability against frequent public use
- Easy to maintain & repair: modular design, key components are easy to disassemble and assemble; meanwhile we provide clear maintenance manuals and training support; common spare parts are easy to obtain

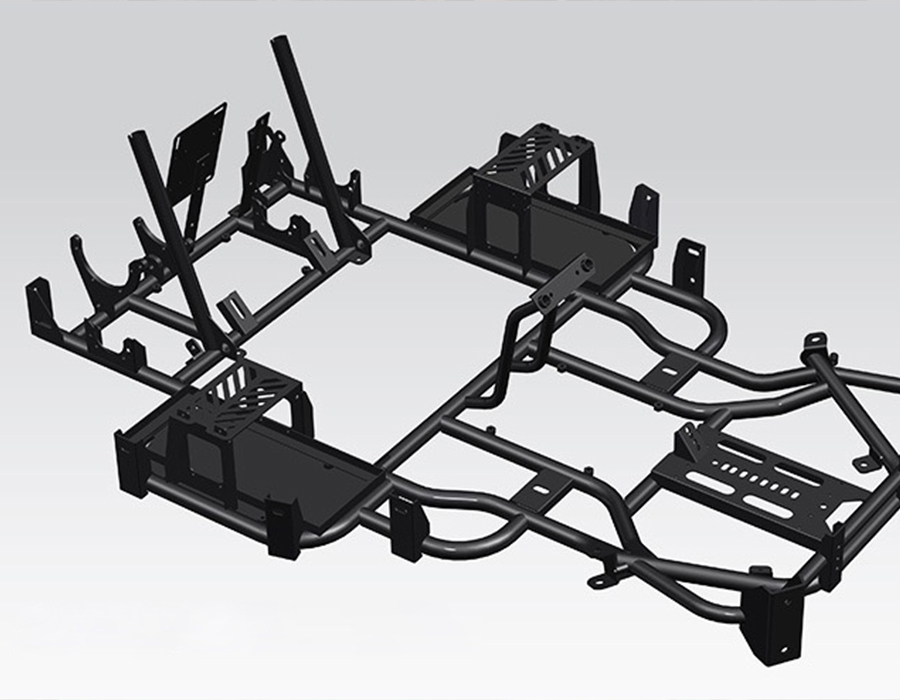

The frame is made of 32 mm chrome-molybdenum steel tubes, offering high strength and resistance to deformation. After undergoes primary heat treatment, significantly reducing material stress and preventing chassis deformation.

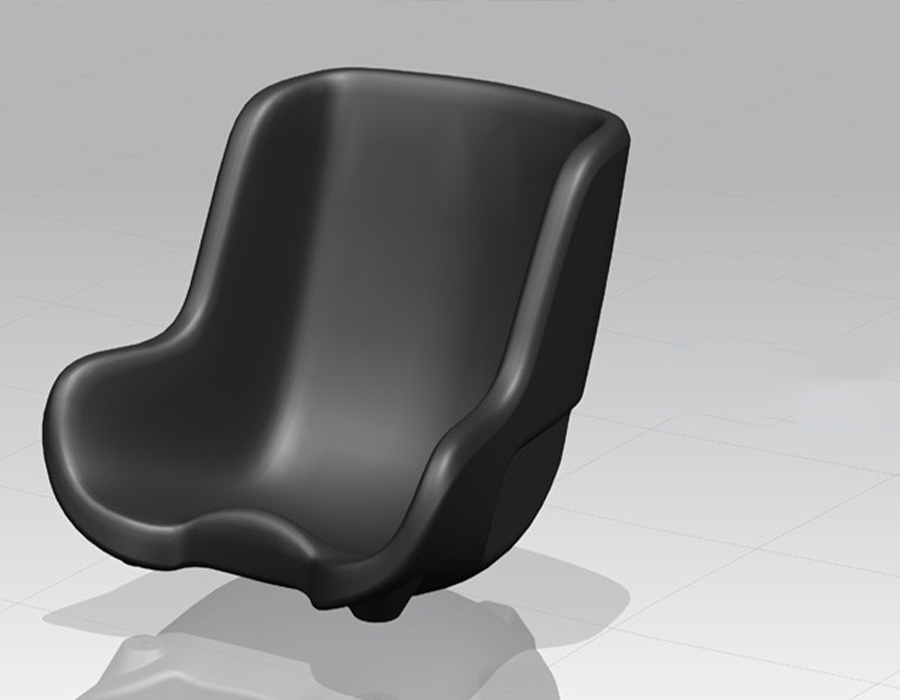

The seat is constructed from double-layer hollow reinforced plastic to enhance driving comfort for children. When combined with a four-point harness and roll cage, it maximizes driver safety.

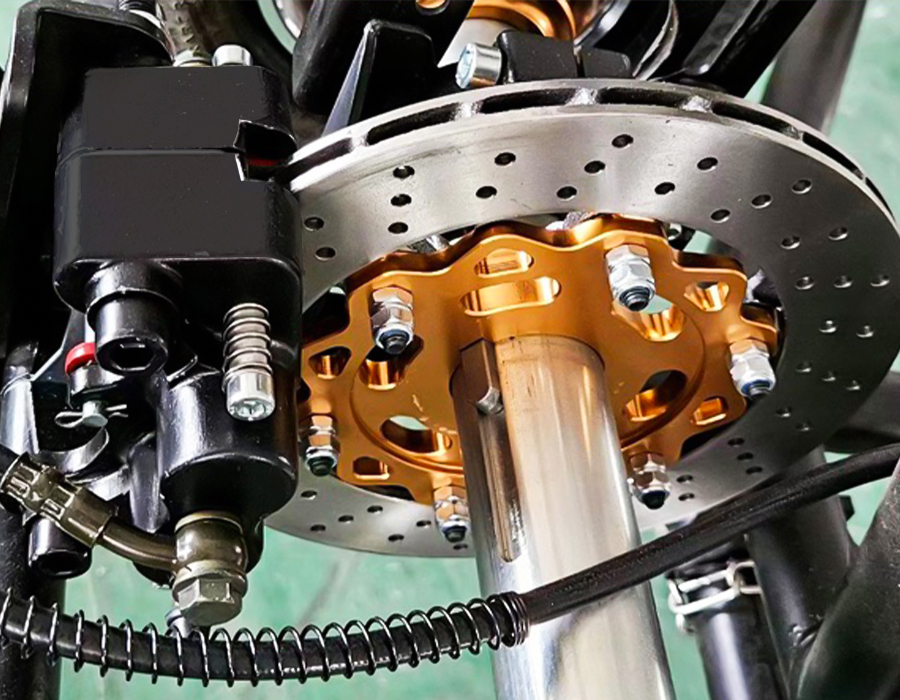

Equipped with hydraulic braking system, give unique heat dissipation effects concerning pump and calipers, resulting in reduced brake oil temperatures. The rear brake caliper is forged in two pieces: inside there are four pistons with stroke recovery. It features a 180*16 mm hydraulic brake disc, providing sensitive braking effects, fast response, and effectively shortening braking distance.

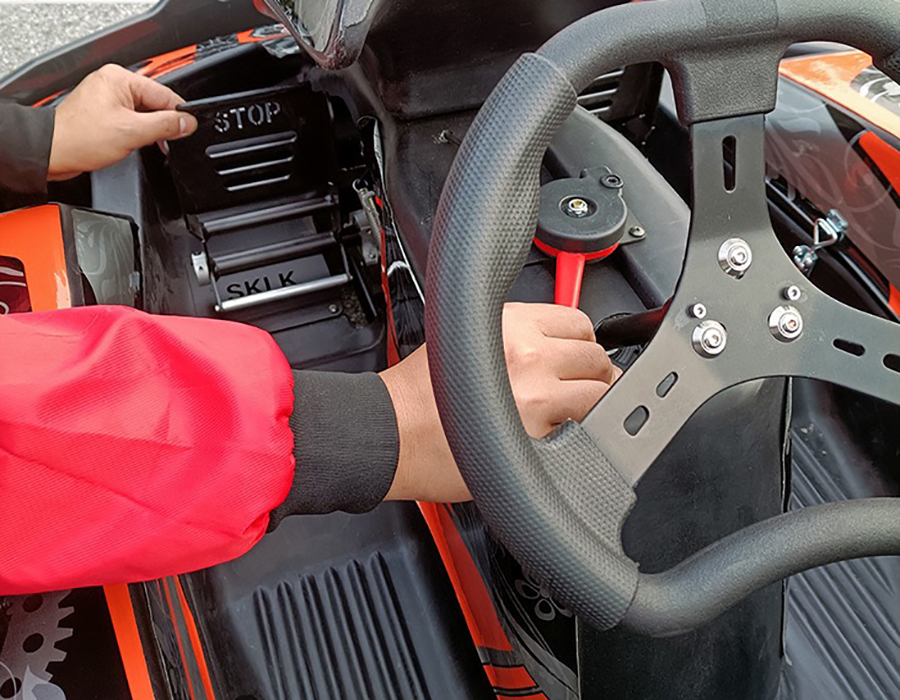

The driver or track staff can quickly adjust the pedal position using the pedal adjustment mechanism based on the driver's height to achieve an optimal driving position.

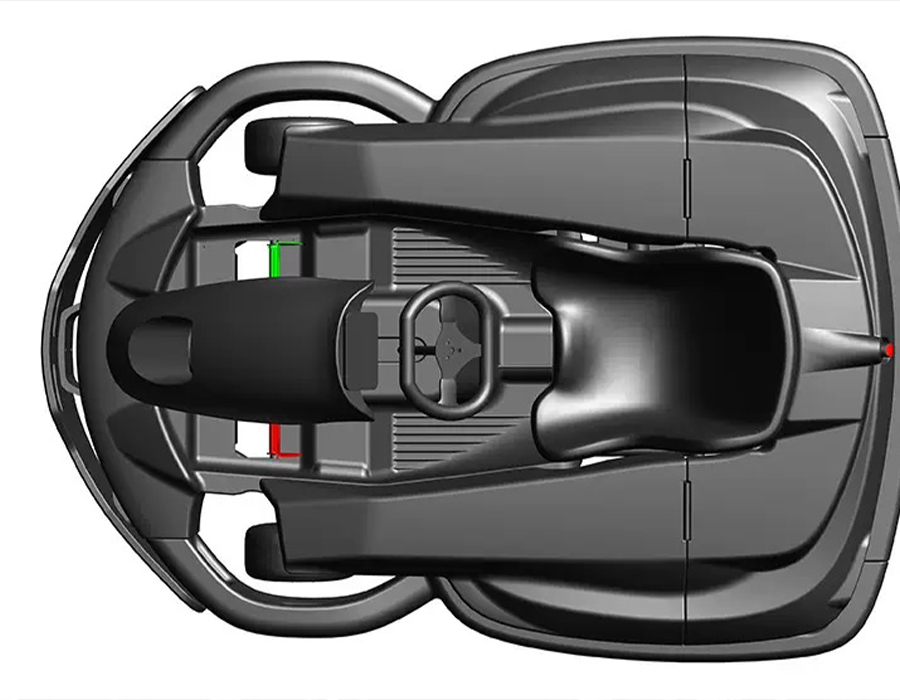

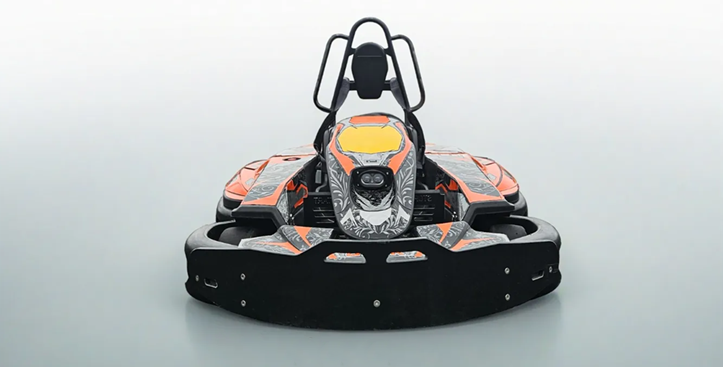

Full covered double-layer hollow high-toughness HDPE body works

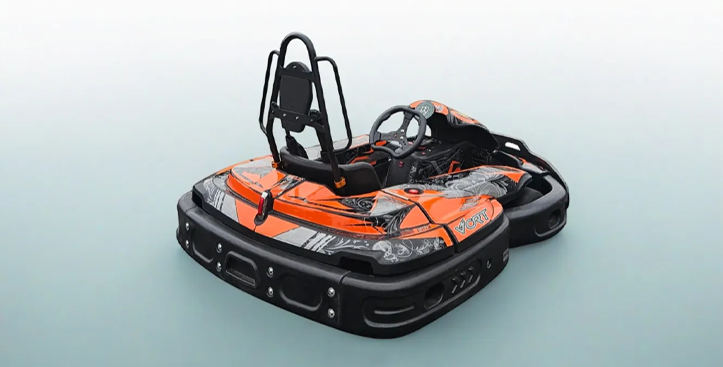

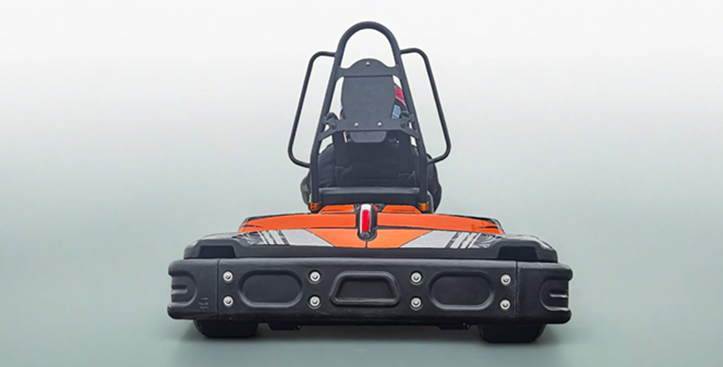

Can be paired with an anti-collision frame to absorb impact during collisions, protecting the driver’s safety and reducing the risk of frame deformation.

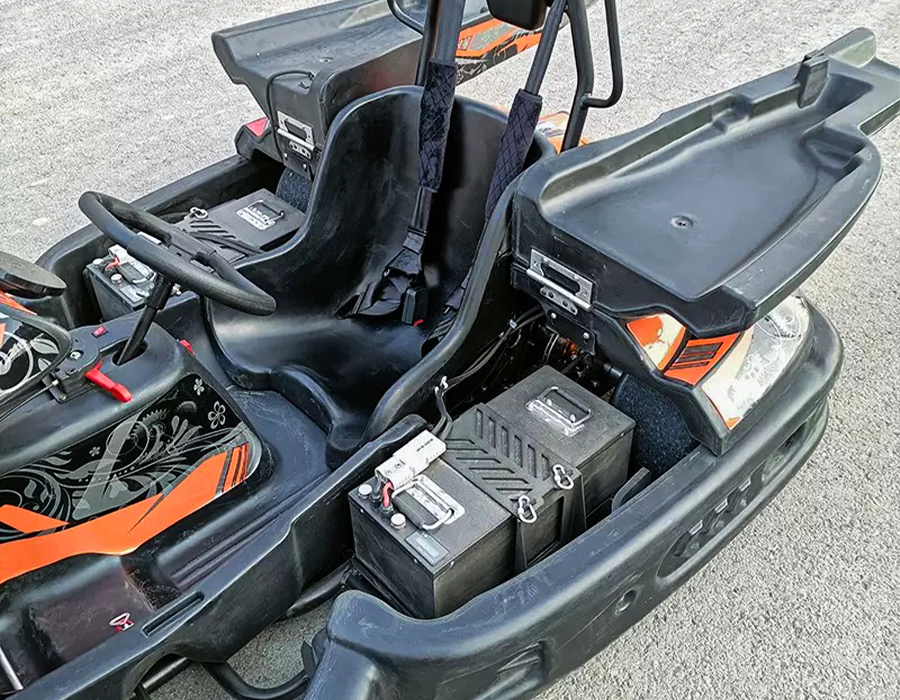

With a quick swap battery, one set of battery packs can be charged while another provides driving sessions.
| Electric Specifications | Kart Specifications | Options |
| BYD/CATL LFP Battery 72V 30Ah/60Ah | φ32 mm 4130crmo Steel Frame | F1 Style Basic Steering Wheel |
| 3000/4000 W Permanent Magnet Brushless Motor | Modular Chassis Structure | Custom Body Stickers |
| Headlight | φ40 mm Hollow Rear Axle | Boost Button (Push-To-Pass) |
| Rear Brake Lights | Hydraulic Brake System | Advanced Remote Control |
| Steering Wheel Mounted Forward and Reverse Buttons | Ventilated Brake Rotors | Track Manager System |
| Battery Management System (BMS) | Four-Point Racing Harness | Pully Drive with Tensioner |
| Anti-Throttle/Brake Interlock System | Integrated Headrest & Rollbar | Add One More Battery Package |
| Forward & Reverse Drive | Full Covered HDPE Bodywork & Impact Absorption Bumper System | Upgrade to 4000 W Motor |
| Ignition Button | Adjustable Pedal Box Range 130mm | |
| LCD Steering Wheel Display | Aluminum Wheel Rims | |
| Quick Swap Battery System（in 2 mins） | Double-layer Hollow Seat | |
| 10*4.5-5/11*7.1-5 Tires | ||
| 3 Gears Speed Limit 40/60/80 km/h | ||
| Full Covered Floor Pans |
