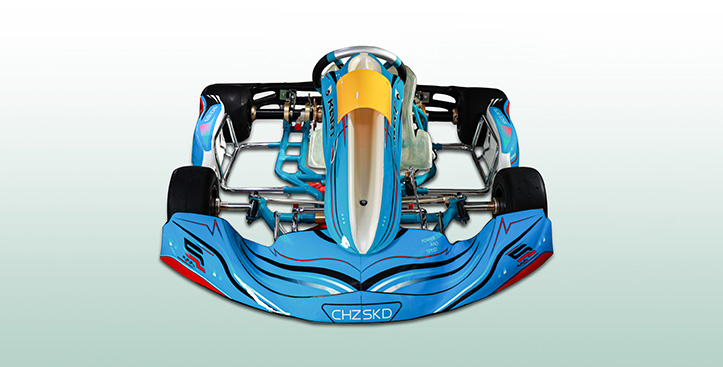

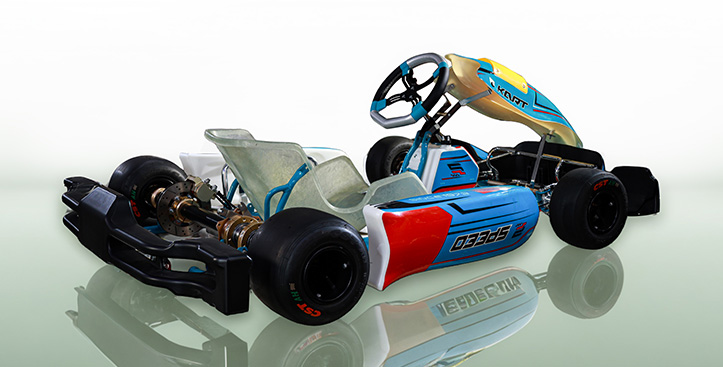

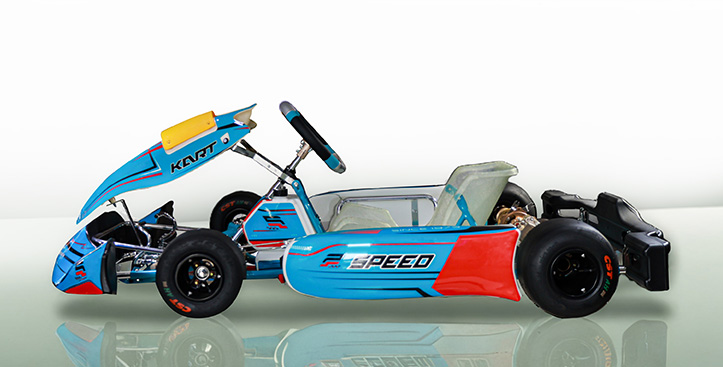

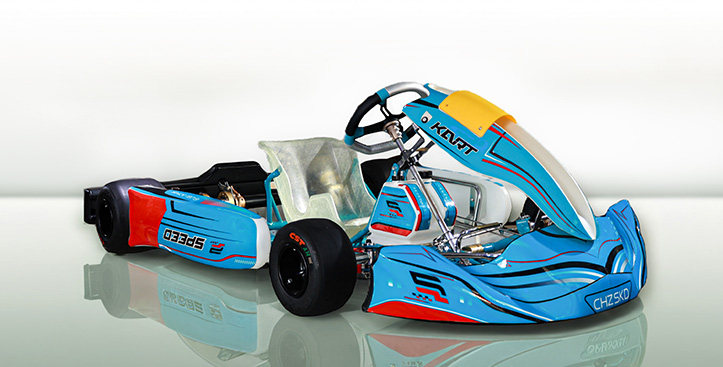

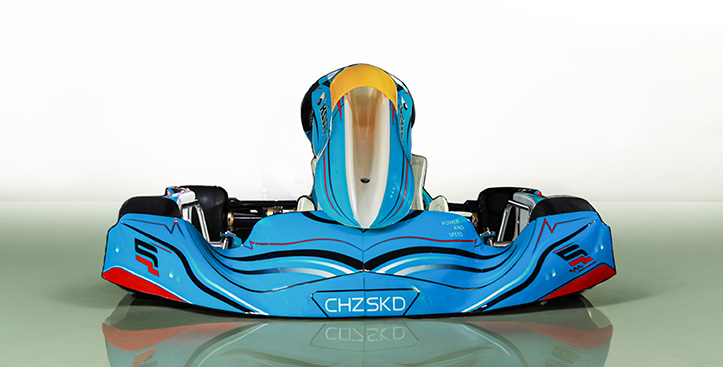

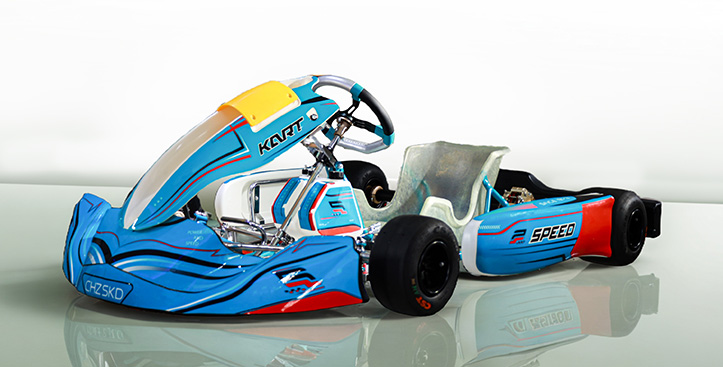

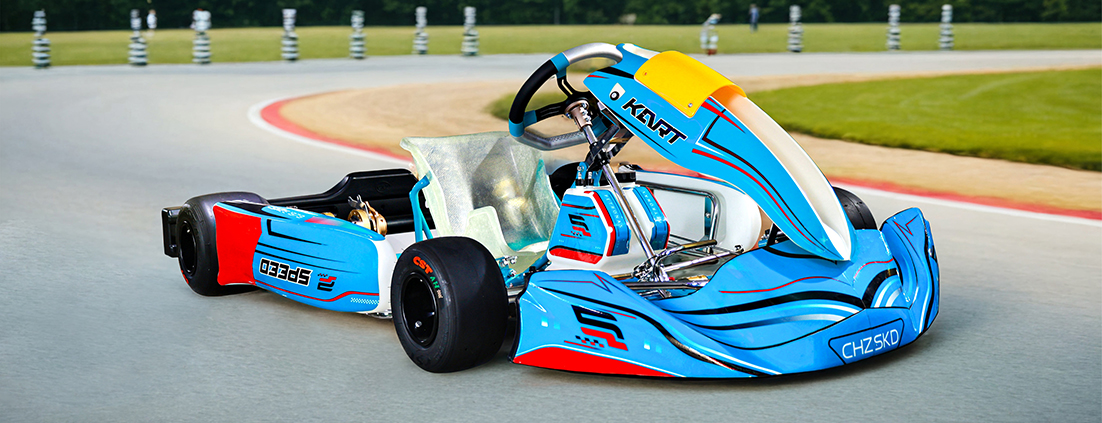

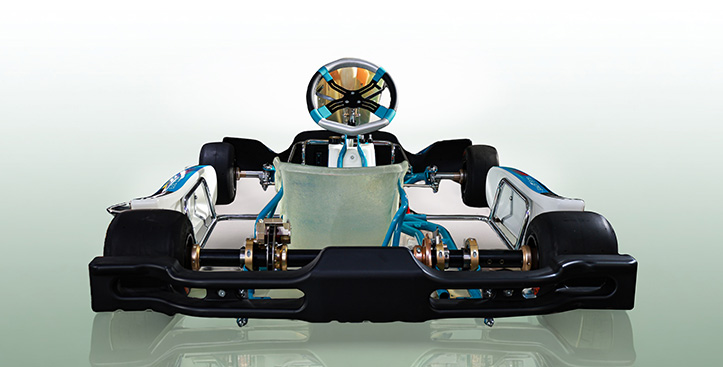

FR-125

1. The chassis of this model is designed and manufactured according to OK-class standards, using 30 mm chrome-molybdenum steel tubes, offering high strength and resistance to deformation.

2. Utilizes automated TIG welding technology to minimize manual errors, enhancing welding precision and quality.

3. The frame undergoes primary heat treatment, significantly reducing material stress and preventing chassis deformation.

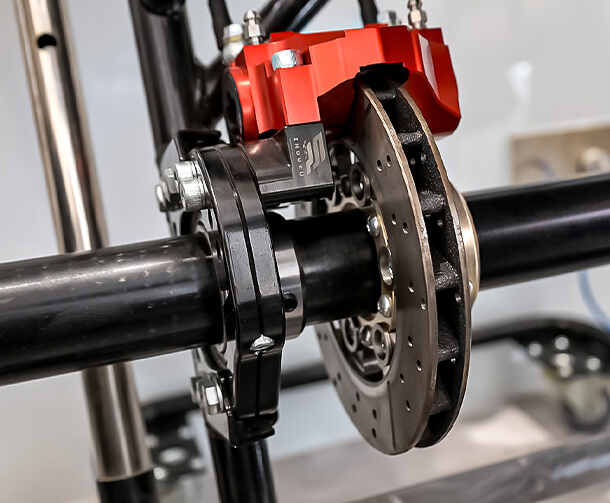

4. Equipped with the Ibox 8 braking system, new solutions adopted give unique heat dissipation effects concerning pump and calipers, resulting in reduced brake oil temperatures. The rear brake caliper is forged in two pieces: inside there are two pistons with stroke recovery. It features a 180*16 mm hydraulic floating brake disc, providing sensitive braking effects, fast response, and effectively shortening braking distance (carbon ceramic brake discs are optional).

5. 50*2*1040 mm rear axle, paired with CNC-machined aluminum axle hubs.

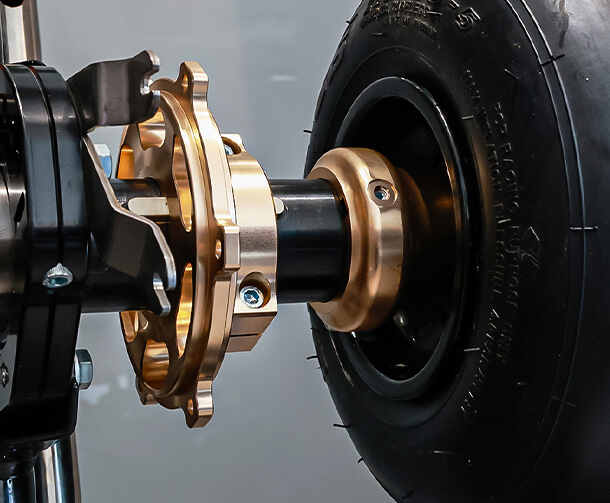

6. Lightweight design: The chassis extensively uses aluminum alloy components, including brake carrier, wheel hubs, wheel rims, steering wheel and sprocket carriers.

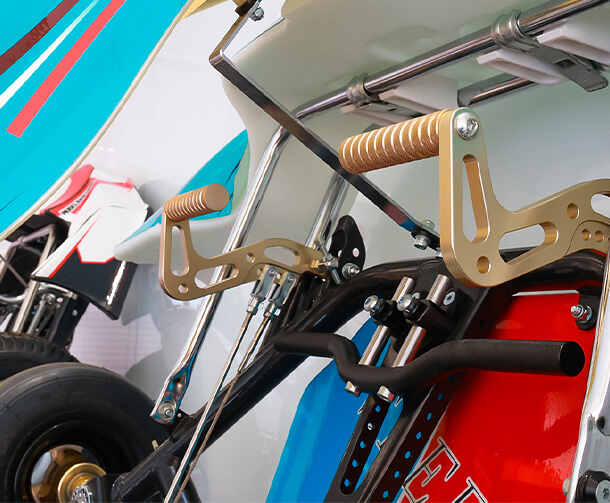

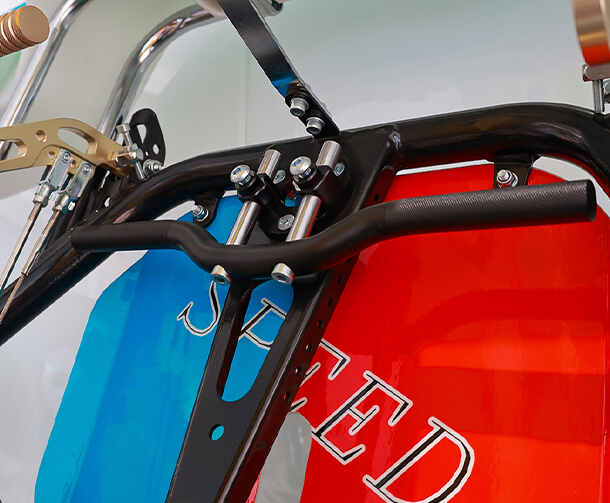

7.Front torsion bar allows drivers to adjust chassis stiffness according to track conditions.
