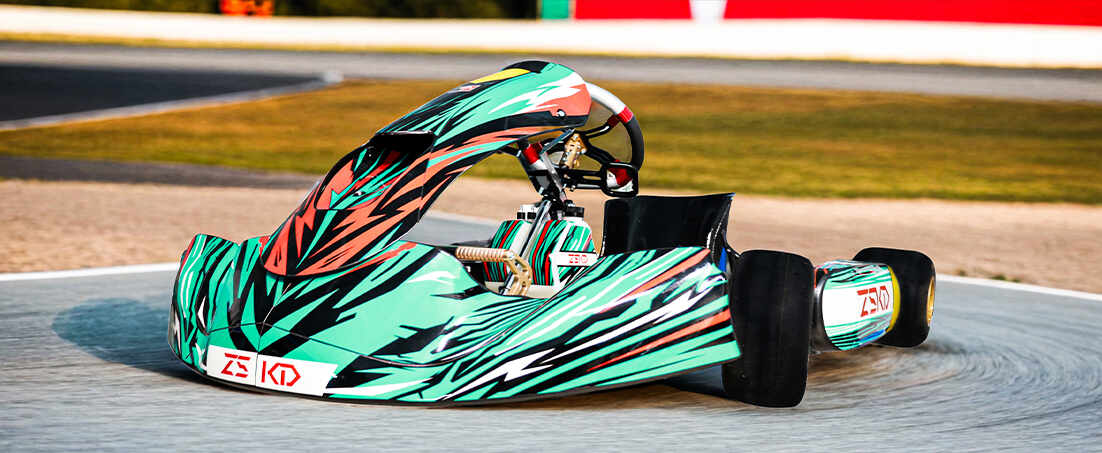

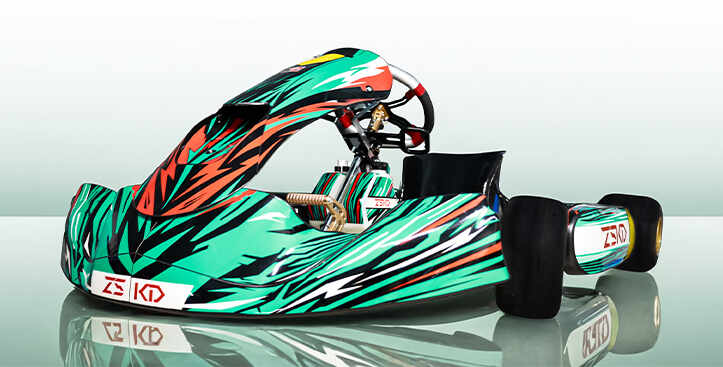

FR-125 KZ

FR-125 KZ

1. FR-125 KZ chassis is designed and manufactured according to shifter categories standards, using 30mm chrome-molybdenum steel tubes, offering high strength and resistance to deformation.

2. Utilizes automated TIG welding technology to minimize manual errors, enhancing welding precision and quality.

3. The frame undergoes primary heat treatment, significantly reducing material stress and preventing chassis deformation.

4. In the shifter category, the braking system plays a decisive role in performance. The Ibox 9 braking system (an upgraded version of the Ibox 8) is adopted for this model. This solutions provide unique heat dissipation effects for the pump and calipers, reducing brake oil temperatures. The rear brake caliper is forged in a single piece with two pistons featuring stroke recovery. It includes a 180*16 mm hydraulic floating brake disc (carbon ceramic brake discs optional). Additionally, the new brake distributor has been optimized for efficiency, and the front calipers are redesigned with enhanced fin geometry and thickness to improve heat dissipation and structural rigidity.

5. 50*2.5*1045 mm rear axle, paired with CNC-machined magnesium alloy axle hubs.

6. Lightweight design: The chassis extensively uses magnesium alloy and aluminum alloy components, including pedals, axle hubs, wheel rims, steering wheel and sprocket carrier.

7. Front torsion bar allows drivers to adjust chassis stiffness according to track conditions.

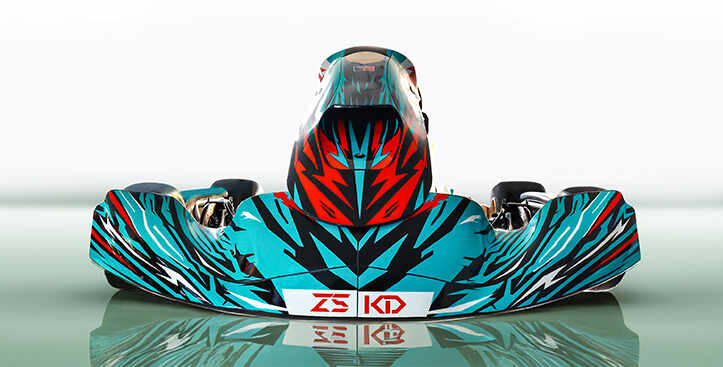

8. It features the new B11 Body Kit with a unique aerodynamic design to reduce drag and enhance on-track performance.

FR-125 KZ
FR-125 KZ
FR-125 KZ
FR-125 KZ

Features

  • Hydralic Rear Brake
  • Frame
  • Front Brake System
  • Magnesium Wheel Rims
  • Steering Wheel
  • Steering geometry
  • Seat
  • Axle Hubs
  • Torsion Bar & Clamp
Hydralic Rear Brake

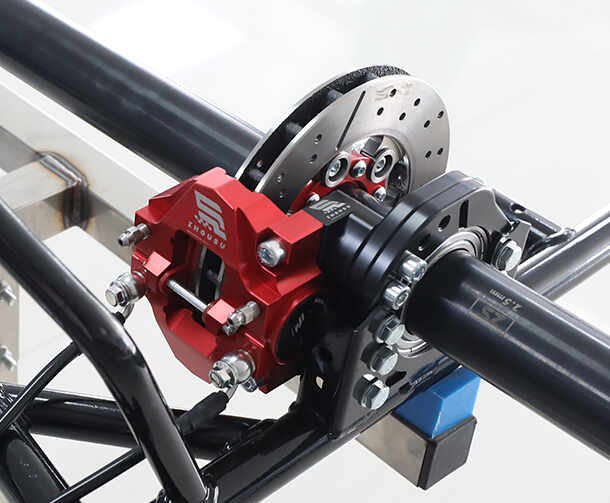

Hydralic Rear Brake

In the shifter category, the braking system plays a decisive role in performance. The Ibox 9 braking system (an upgraded version of the Ibox 8) is adopted for this model. This solutions provide unique heat dissipation effects for the pump and calipers, reducing brake oil temperatures. The rear brake caliper is forged in a single piece with two pistons featuring stroke recovery. It includes a 180*16 mm hydraulic floating brake disc (carbon ceramic brake discs optional). Additionally, the new brake distributor has been optimized for efficiency, and the front calipers are redesigned with enhanced fin geometry and thickness to improve heat dissipation and structural rigidity.

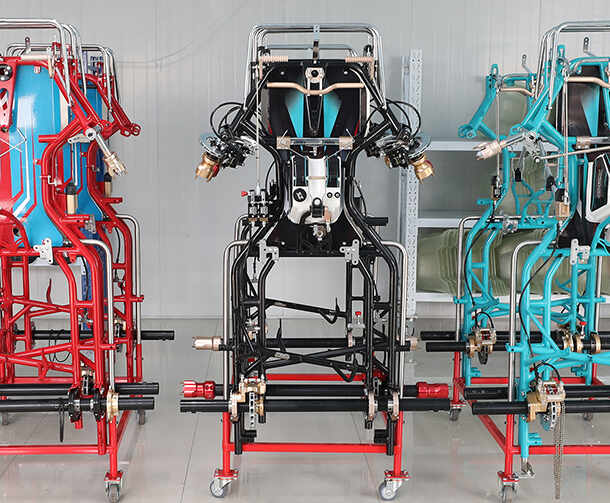

Frame

Frame

FR-125 KZ chassis is designed and manufactured according to shifter categories standards, using 30mm chrome-molybdenum steel tubes, offering high strength and resistance to deformation

Front Brake System

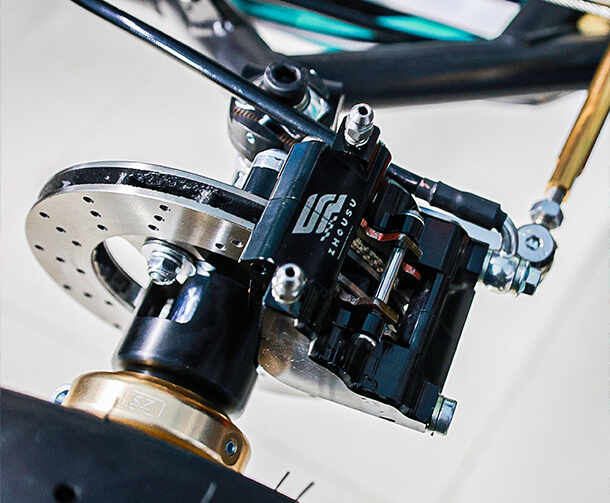

Front Brake System

Completely renewed front calipers, both in the forged and machined components, showing a new design of fins and thickness, with the aim of further increasing heat dissipation capacity and structural rigidity.

Magnesium Wheel Rims

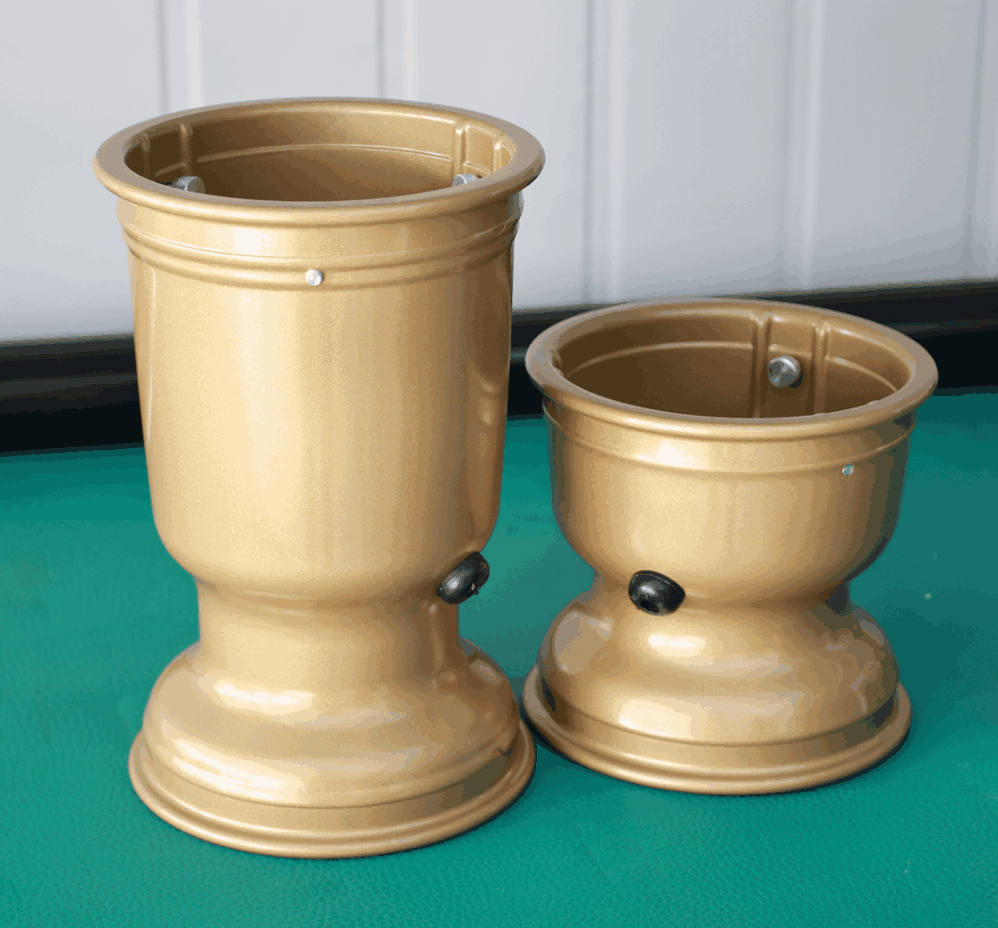

Magnesium Wheel Rims

Equiped with 130/212 mm magnesium wheel rims

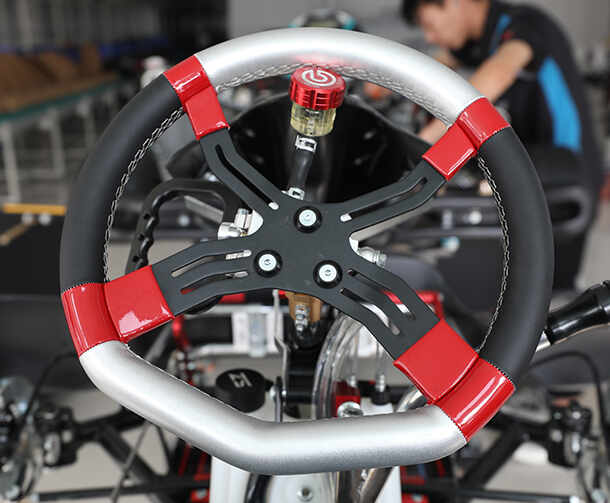

Steering Wheel

Steering Wheel

To achieve a lightweight design, the steering wheel is constructed from magnesium material, wrapped in PU leather. Adjustable steering base allowing drivers to customize its position according to their driving habits.

Steering geometry

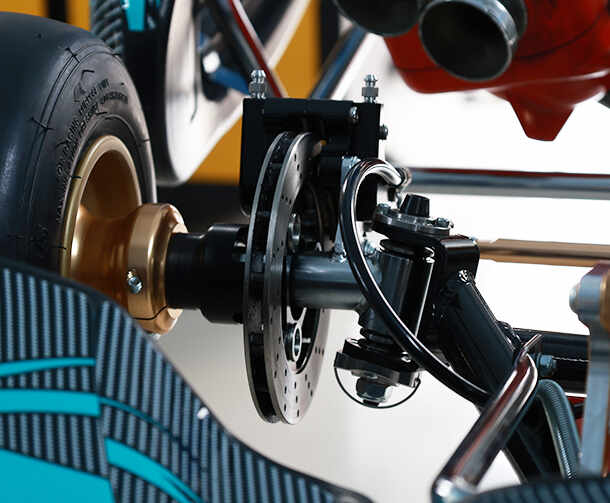

Steering geometry

Spindles with cast stainless steel body, with flange and removable wheel axle by means of a fixing bolt. Steering tie rods made from aluminium material with aluminium bushes to fix uniball. eccentric adjuster allow driver to choose the most suitable setup, according to use (indoor track, outdoor track, short, quick, mixed...). Each front wheel is mounted on four bearings to reduce axle loads as much as possible.

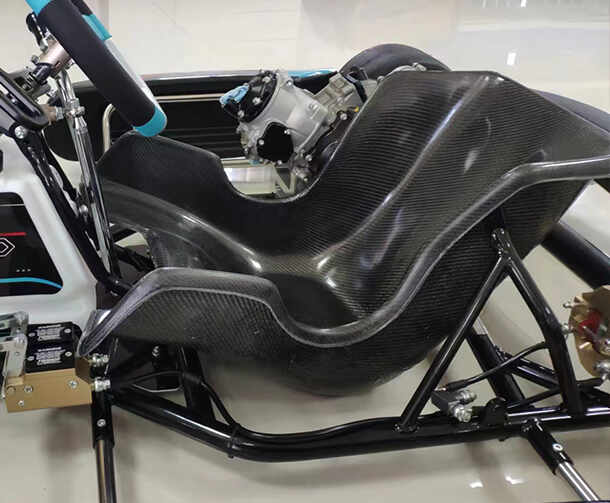

Seat

Seat

The seat is made from carbon fiber, mounted to a steel frame on chassis

Axle Hubs

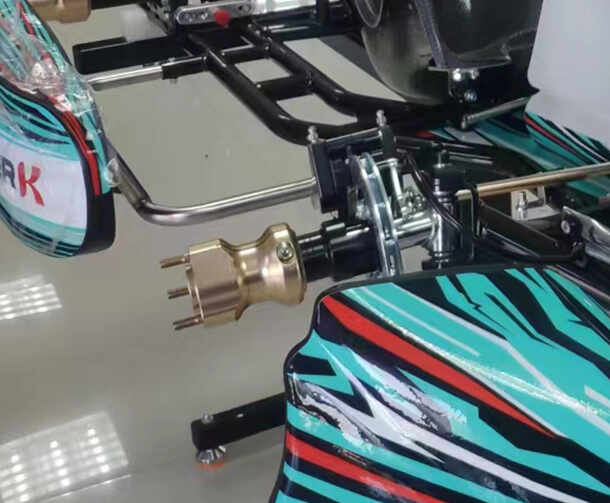

Axle Hubs

Magnesium axle hubs are adopted to improve performance and reduce weight.

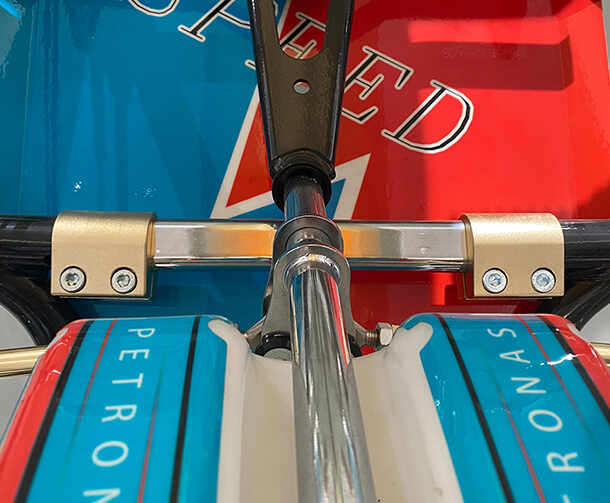

Torsion Bar & Clamp

Torsion Bar & Clamp

Front torsion bar allows drivers to adjust chassis stiffness according to track conditions.

Technical Specification

Product Name KZ Kart Chassis
Compatible Engine IAME X30 Shifter, Rok Shifter, TM KZ-R2
Frame Material 30crmo Chrome-molybdenum Steel
Tubular Frame Ø30-32×2 mm
Frame Tech TIG+Laser Welding
Wheelbase 1045 mm
Axle Hollow steel ø 50 mm
Brake iBox Hydraulic Ventilated Brake System
Brake Disk Rear: Floating and turbo ventilated disk
Front: Floating 2 disks turbo ventilated
Wheel Rim Magnesium
Tank 6.5 Litre
Seat Carbon Fiber Seat
Steering Wheel φ 32 Magnesium 4-spoke Wheel
Safety Protective base plate for break disk, brake pedal with 2 points attachment, integral chain cover, anti-locking bar
